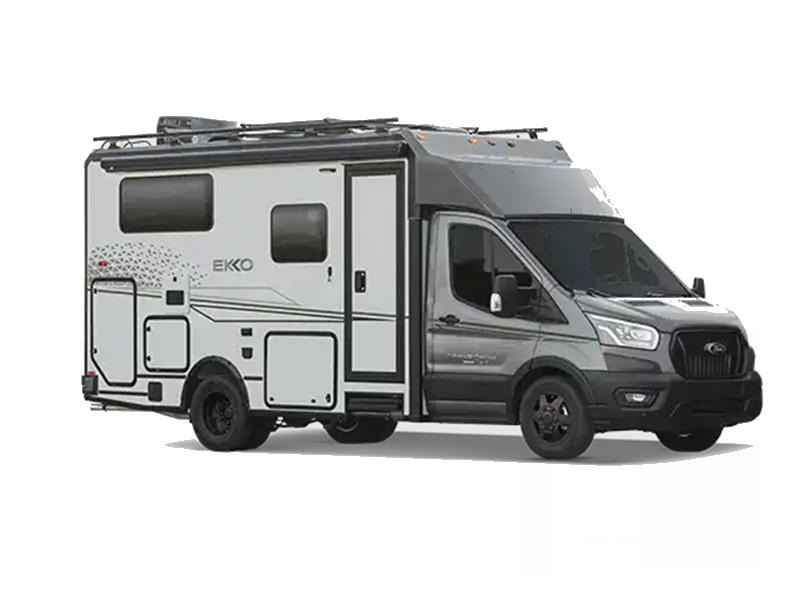

Winnebago Ekko Motor Home Class C RVs For Sale
The Winnebago Ekko Class C gas motorhome is ready for all weather and all roads with its insulated water service center, extensive all-season insulation, dual-pane acrylic windows, heated exterior storage, and Ford AWD Transit chassis! Plus, you can camp almost anywhere since the Ekko is ready to go off-grid with its 320-amp-hour lithium ion battery, a second alternator dedicated to charging the batteries, and three solar panels.
The Ekko is not only a power house for rugged adventures, but it is also a comfortable living environment. The full galley will have you cooking up a delicious meal in no time, and the WinnSleep system can turn two twin beds into one queen bed so that you can adjust your sleeping space as needed. You can also add the optional pop-top sleeping area with FROLI sleep system if you want to create even more sleeping space. This coach also has a bathroom for added convenience which means that there is nothing stopping you from packing up and heading out whenever the mood strikes.
With the efficiency of a camper van, the added capacity of a Class C coach, and the enhanced capability of AWD, the Ekko Class C gas motorhome from Winnebago is going to change the way you travel!
-
Ekko 22A
Winnebago Ekko AWD Class C gas motorhome 22A highlights: Under-Bed Storage ... more about Ekko 22A
Have a question about this floorplan? Contact Us
Specifications

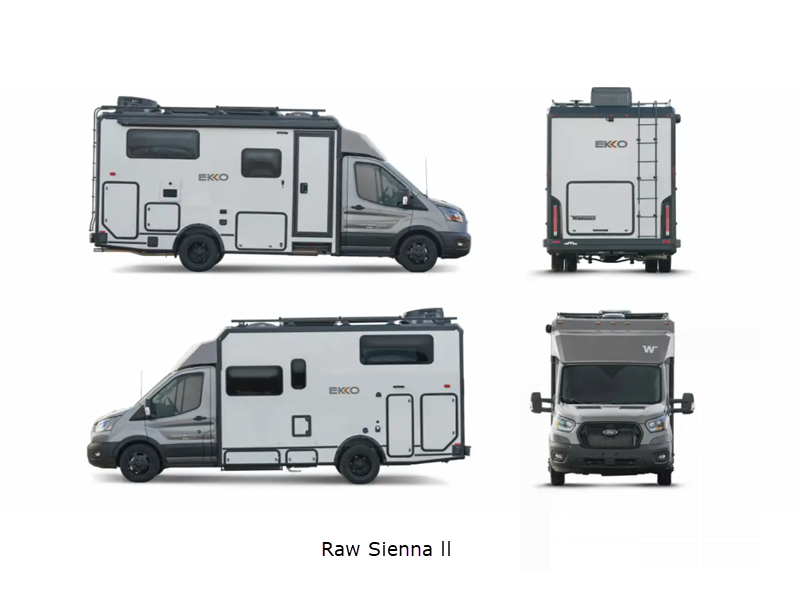

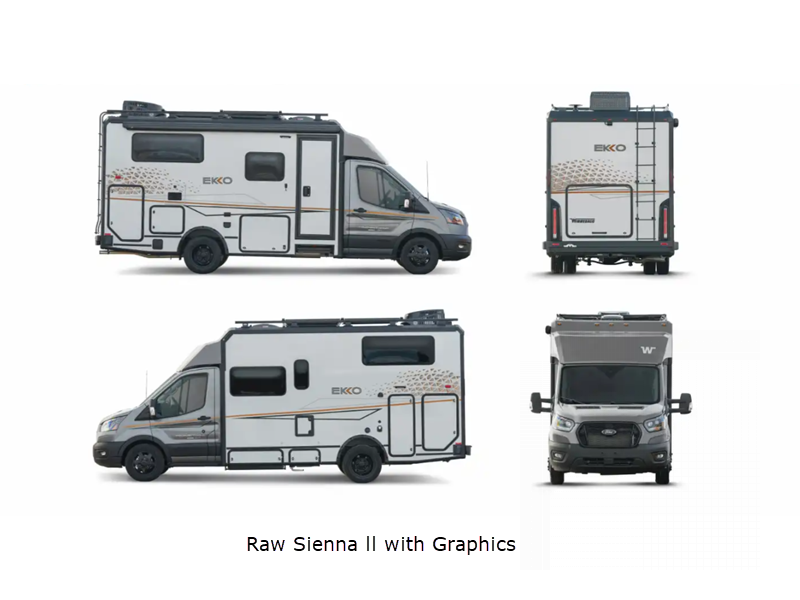

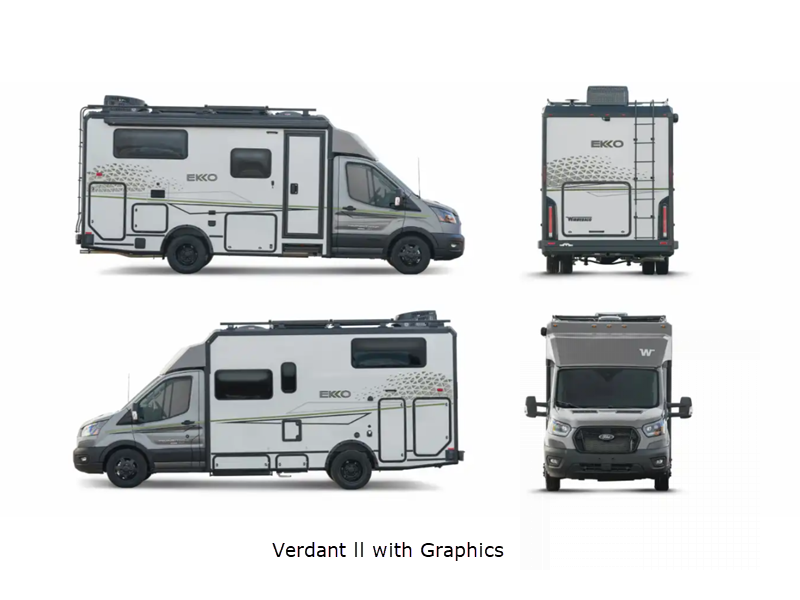

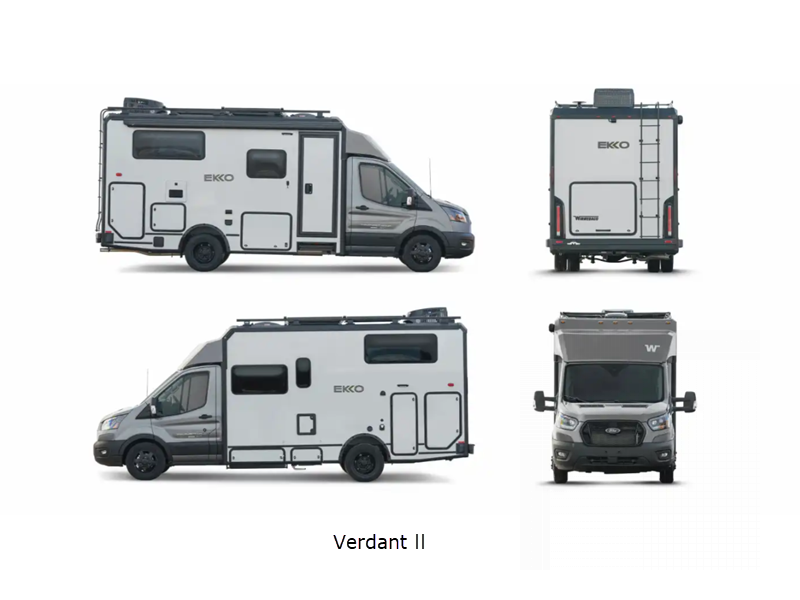

Sleeps 2 Length 23 ft Ext Width 7 ft 3 in Ext Height 10 ft 6 in Int Height 6 ft 8 in Interior Color Veredis, Juniper Exterior Color Raw Sienna ll, Raw Sienna ll with Graphics, Verdant ll, Verdant ll with Graphics Hitch Weight 5000 lbs GVWR 11000 lbs Fresh Water Capacity 50 gals Grey Water Capacity 51 gals Generator Cummins Onan QG 2,800i Gas Fuel Type Gasoline Engine 3.5L EcoBoost V6 Chassis Ford AWD Transit Fuel Capacity 31 gals Wheelbase 156 in Available Beds Two Twin Refrigerator Type Single Door Compressor Driven 12V Refrigerator Size 5.3 cu ft Cooktop Burners 2 Shower Size 24" x 30" Number of Awnings 1 Axle Weight Front 4630 lbs Axle Weight Rear 7275 lbs LP Tank Capacity 40 lbs Water Heater Type Truma AquaGo Tankless Comfort Plus AC BTU 13500 btu Basement Storage 65.3 cu. ft. Awning Info 13' Power with LED Lighting and Bluetooth Control Gross Combined Weight 15000 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp Similar Floorplans
Take a Virtual TourEkko Features:
Standard Features (2025)
Chassis
- Ford® AWD Transit Chassis
- 3.5L EcoBoost® V6 gas engine, 10-speed automatic Selectshift® transmission with overdrive
- 4-wheel anti-lock disc brakes
- High-intensity discharge (HID) headlamps
- Trailer hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector

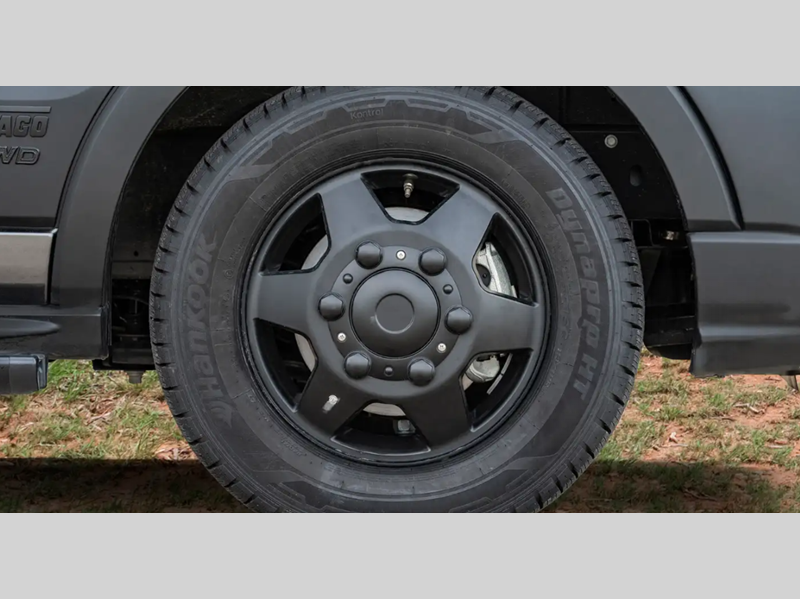

- Stylized performance wheels
- Spare tire
- All-season tires
Cab Conveniences
- Radio/Rearview monitor system colored multi-function touchscreen with SYNC®, navigation, AM/FM stereo with HD/SiriusXM® capability, Apple CarPlay®, Android Auto™, Bluetooth®, dual USB ports and integrated rear camera display
- FordPass™ Connect

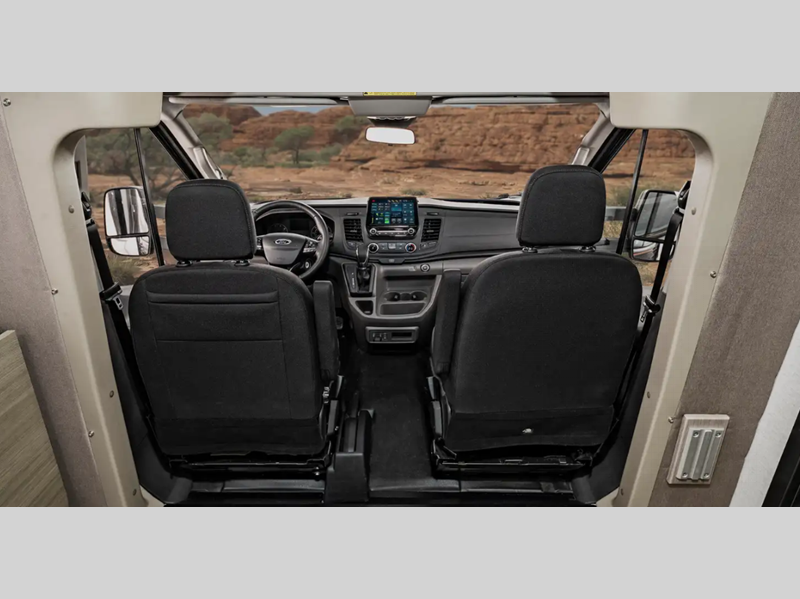

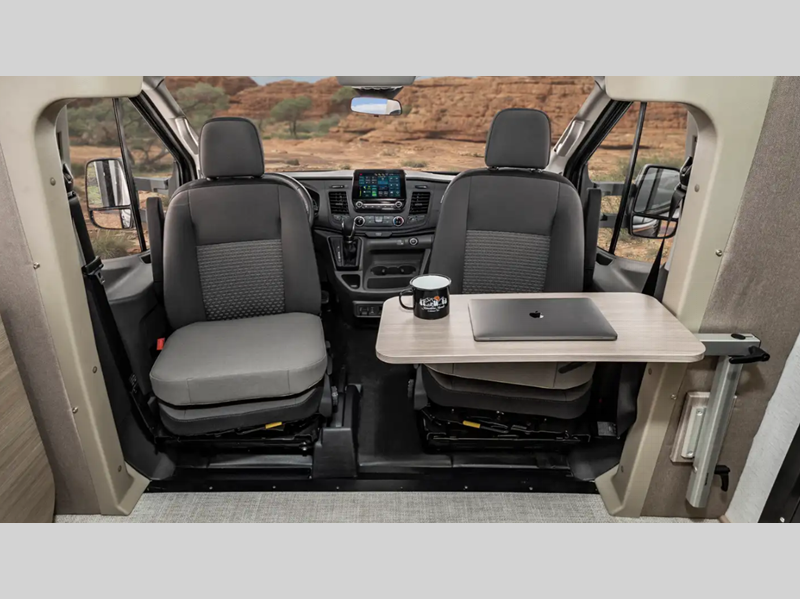

- Cab seats armrest, fixed lumbar support, headrest, recline, slide and swivel
- Airbags driver, passenger
- 3-point seat belts
- 2 cab seat lounge cushions
- Intelligent access system w/push-button start
- Traffic sign assist
- Intelligent speed assist
- Intersection assist
- Electronic air temperature control
- Power windows
- Power mirrors w/defrost and turn signals
- Power assist steering w/tilt and telescoping wheel
- Adaptive cruise control
- Lane-keeping assist
- Pre-collision assist w/Automatic Emergency Braking (AEB)
- Driver alert
- Automatic rain-sensing wipers
- Wiper activated headlamps
- Auto headlamps w/high beam control
- Blind spot monitoring
- Tire pressure monitoring system
- Illuminated Sunvisors

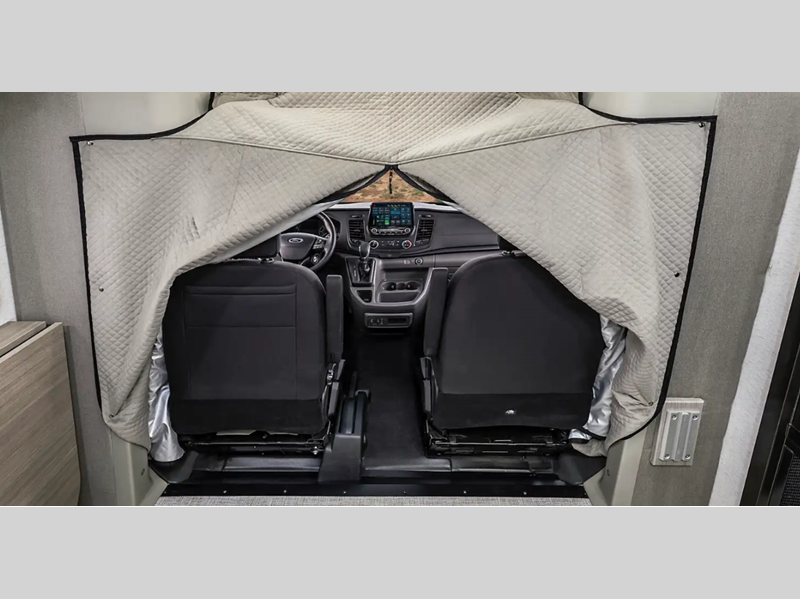

- Front wraparound curtain
- Thermal cab divider wall panel
Electrical System
- Auxiliary start circuit
- Automatic dual-battery charge control
- Coach battery disconnect system
- Dedicated second alternator to charge coach batteries
- Exterior AC duplex receptacle
- Exterior TV jack
- Cummins Onan® QG 2800i gas generator
- 30-amp power cord
- (1) 320-amp-hour Lithionics® lithium ion battery w/Bluetooth control package and battery pack heating system
- (2) 170-watt and (1) 115-watt solar panel/battery charger (220-watts flexible surface solar panel w/optional pop-top)
- 2,000-watt pure sine wave inverter/80-amp charger
Optional Equipment
- Option to remove: Cummins Onan QG 2,800i gas generator
- Add (1) additional 320-amp-hour Lithionics® lithium ion battery (Generator delete mandatory with this option)
Interior
- LED ceiling lights
- Tinted dual-pane euro acrylic windows w/cassette shades

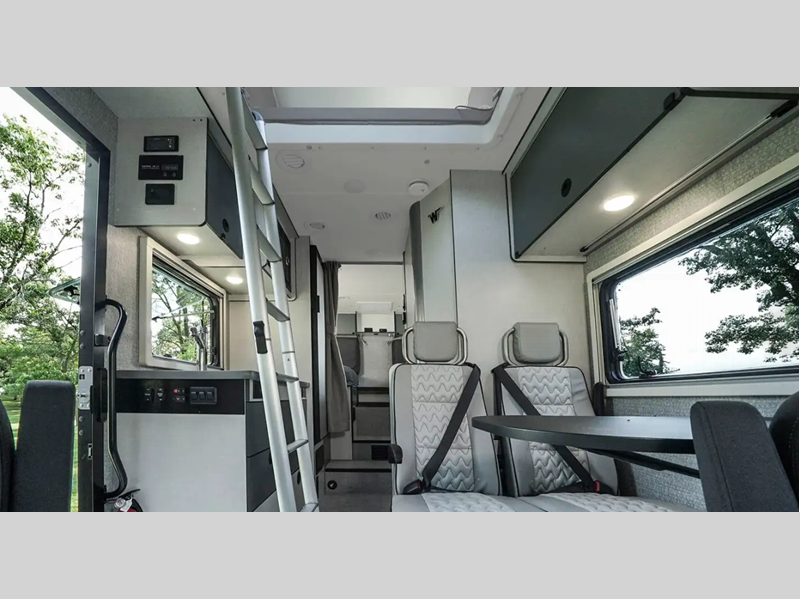

- Dinette seating w/3-point seat belts
- Pull-up/fold down table
- Color touchscreen systems monitor panel
- Vinyl flooring throughout
- Satellite system ready
- Amplified digital HDTV antenna
- Roof wiring access port
- Assist bar
- RAM® Tough-Track™ Mount (dinette overhead)
- 110V, 12V, USB charging ports
- Deluxe powered ventilator fan w/remote
- Overhead accent lighting
Optional Interior Equipment

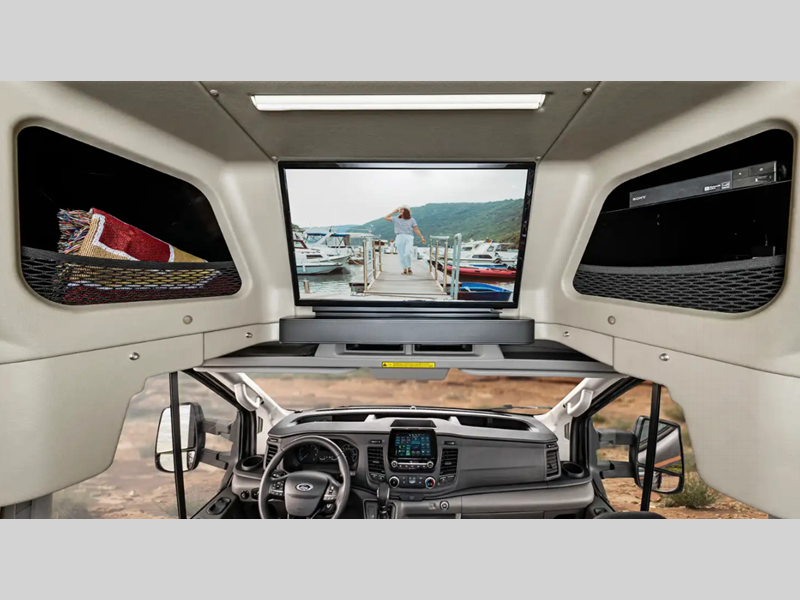

- Entertainment system smart Blu-ray disc player, Bluetooth® soundbar and 24" HDTV
- Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag

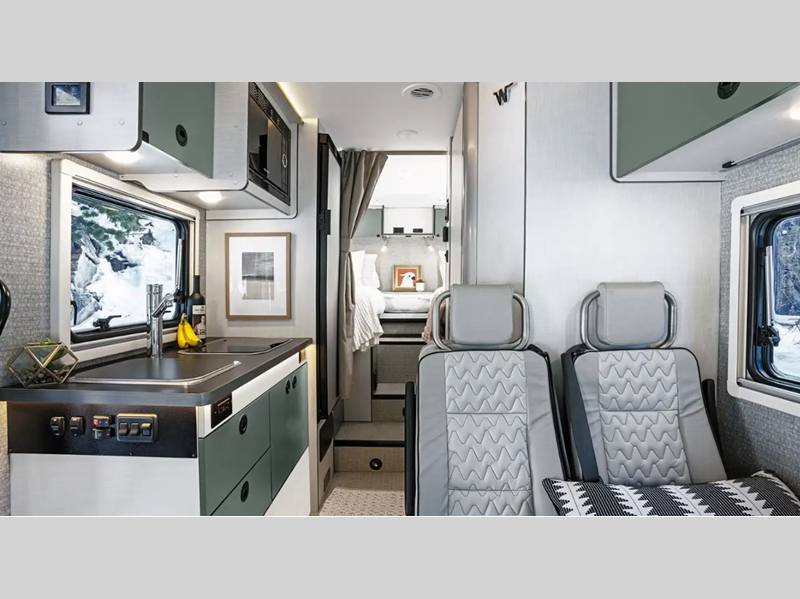

Galley
- Laminate countertops
- Microwave oven w/touch control
- Pantry
- 2-burner LP range cooktop w/cover

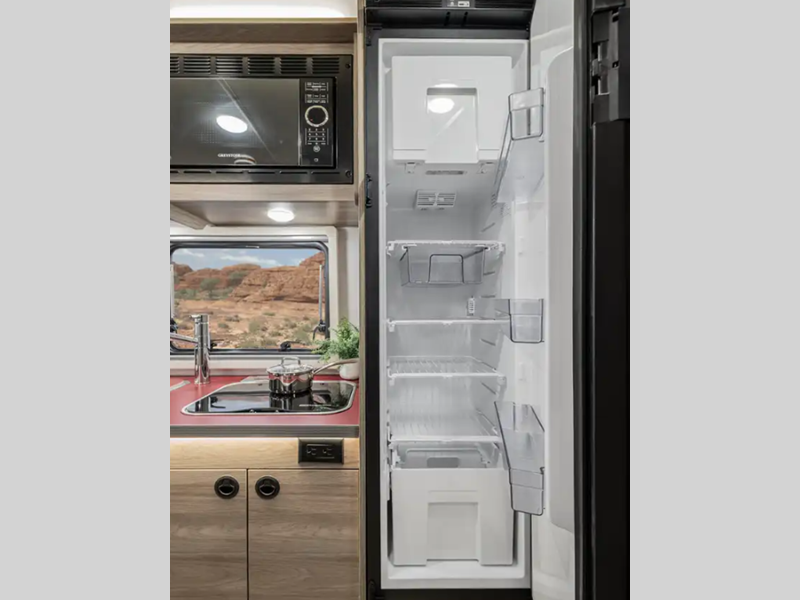

- 5.3 cu. ft. (12V) single door compressor-driven 12V refrigerator/freezer
- Stainless steel sink w/cover
- Adjustable/removable table/counter extension/workstation
Bath
- Medicine cabinet
- Oxygenics® shower head

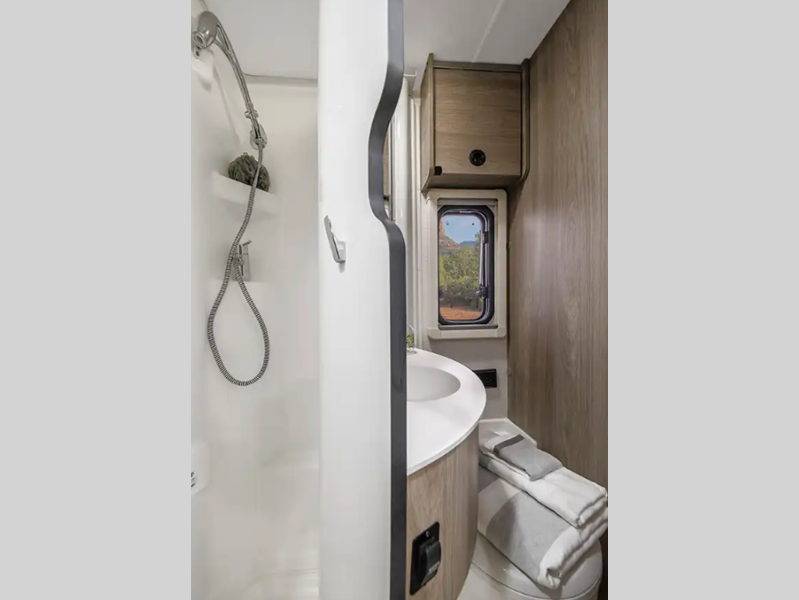

- Dry/wet bath w/pivoting wall
- Robe hook(s)

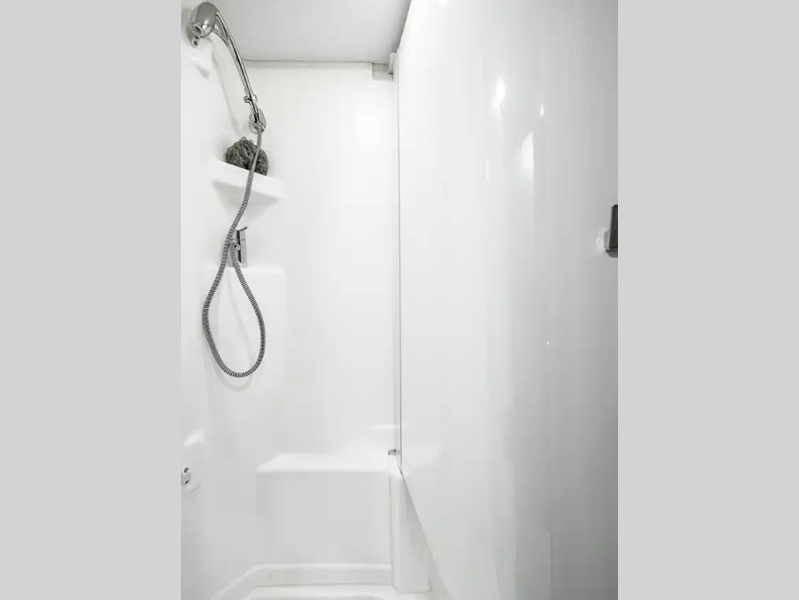

- 24" x 30" Shower w/wall surround
- Shower curtain
- Molded round sink w/single control faucet
- Tissue holder
- Swiveling cassette toilet
- Water pump switch
Bedroom

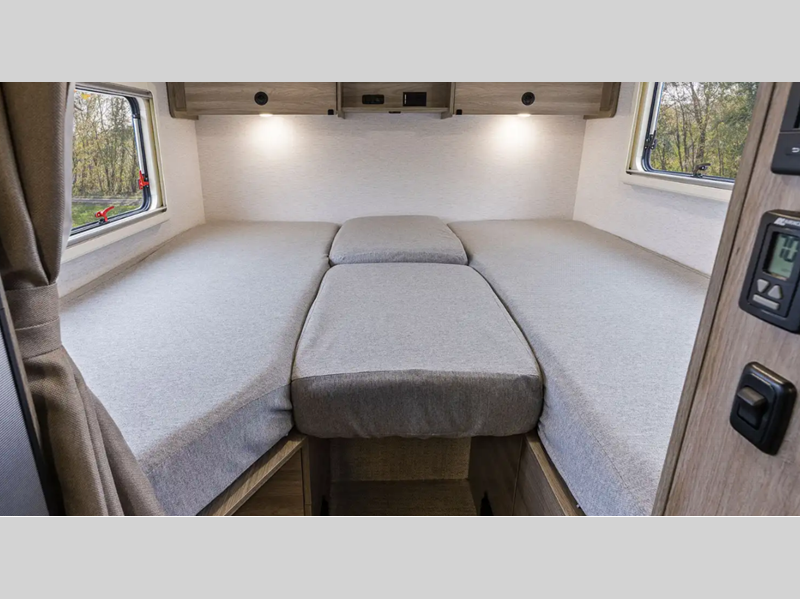

- Twin beds w/WinnSleep™ System
- Flex bed kit
- Wardrobe/drawer storage below beds
- Metal clothes rod
- Room divider curtain
- Reading lights
- 110V, 12V, USB charging ports
Exterior

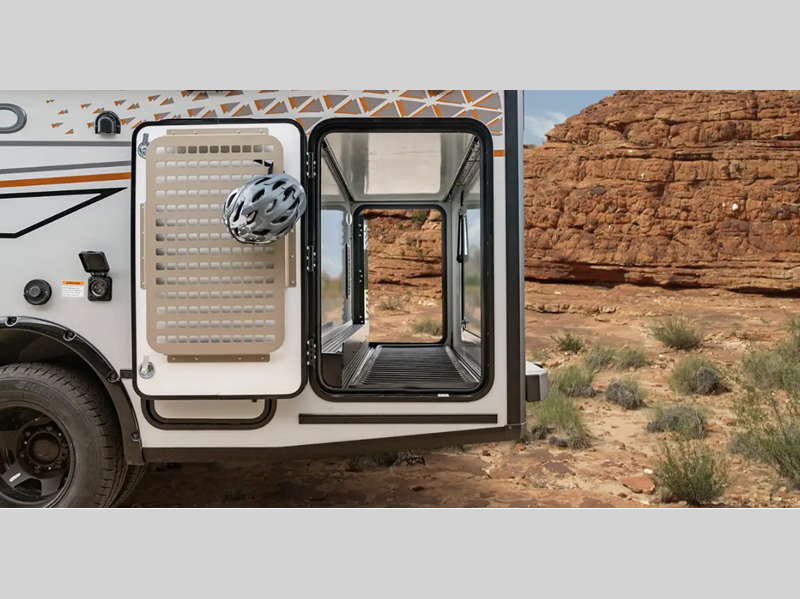

- Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports and LED lighting

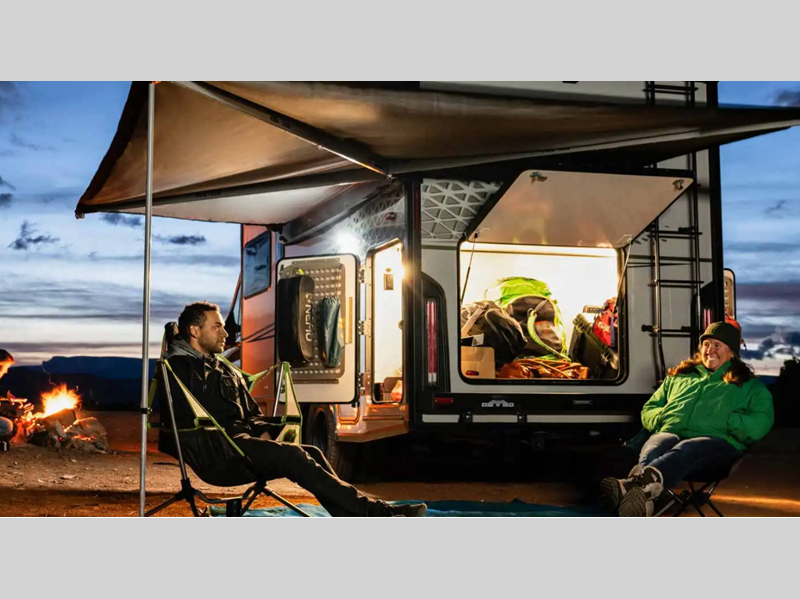

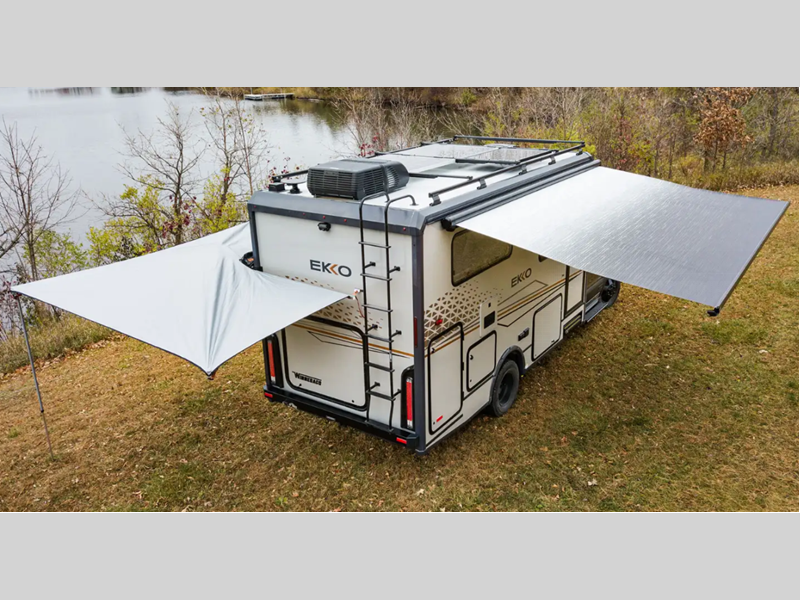

- Powered patio awning w/LED lighting and Bluetooth® control
- Ladder (N/A w/pop-top)
- LED porch light w/interior switch
- Mud flaps
Optional Exterior Equipment

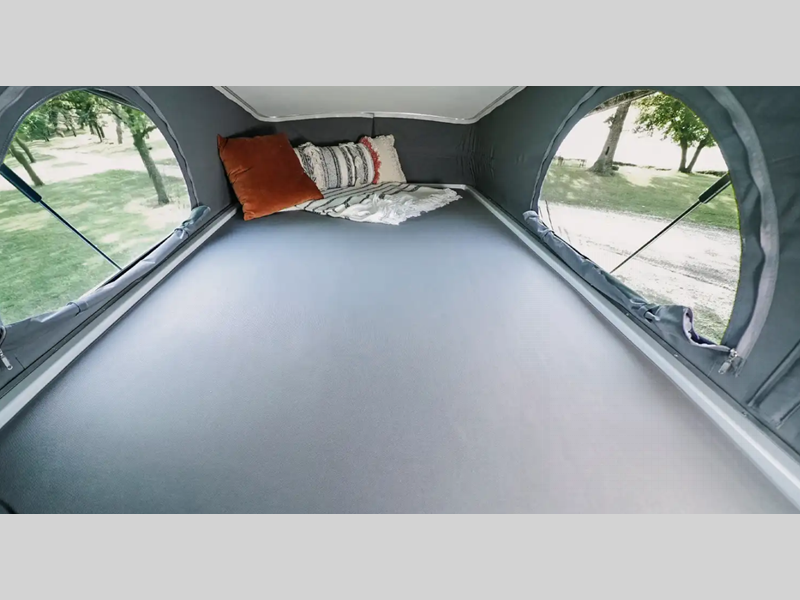

- Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A w/luggage rack, exterior kitchen, aluminum cab steps or ladder)
- Batwing awning
- Luggage rack (N/A w/pop-top)

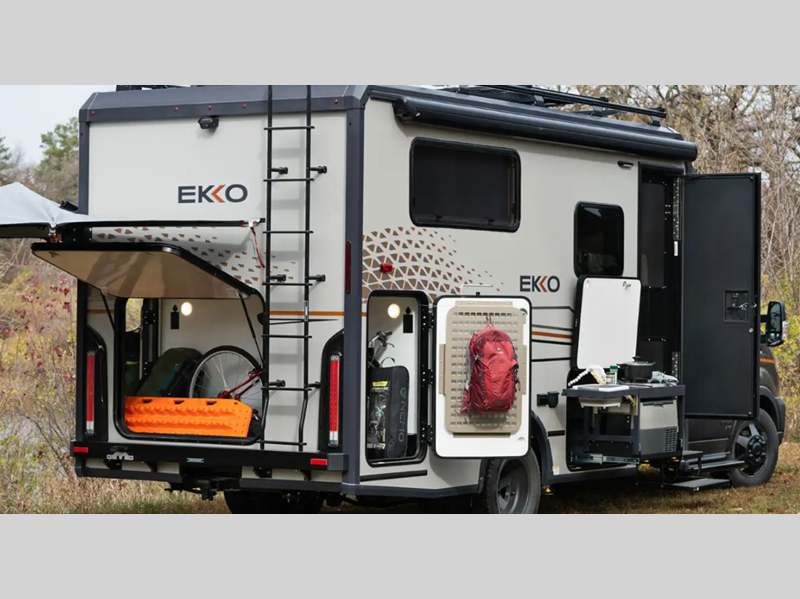

- Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop, flip-up counter extension, quick-connect faucet, collapsible sink, and LP quick-connect hose (N/A w/pop-top)
- Option to remove: Powered patio awning w/LED lighting and Bluetooth control
- Option to remove: Exterior graphics
Heating & Cooling System
- 13,500 BTU air conditioner
- Truma® VarioHeat™ comfort
Plumbing System

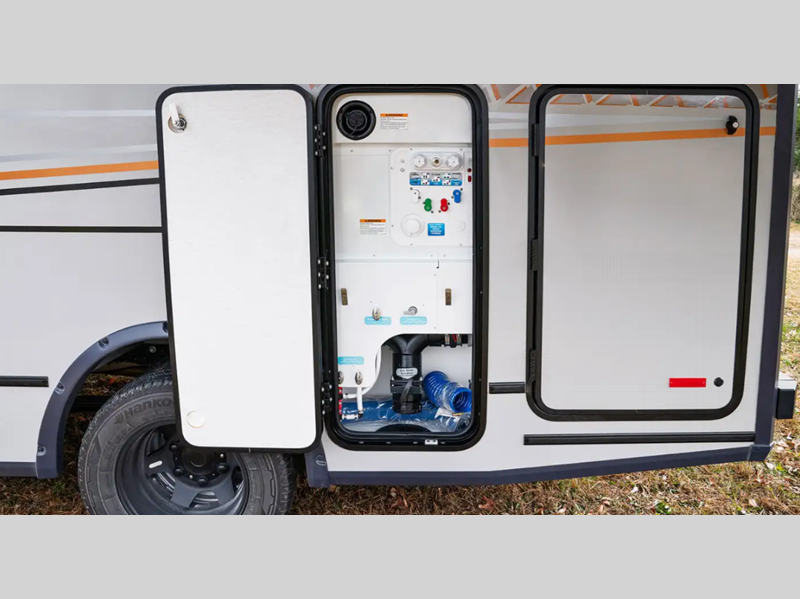

- Insulated water service center houses water center control panel, hooks, cable tv input, freshwater drain and portable satellite dish hook-up
- Truma AquaGo® tankless comfort plus water heater w/recirculation pump
- On-demand water pump
- Cold water purification system (galley only)
- Heated holding tank compartment (above floor)
- 10' sewer hose
- Shower drain pump
- LPG accessory connection (patio area)
- (2) removable 20 lb. LP cylinder tanks
Safety
- LPG leak, smoke and carbon monoxide detectors
- Fire extinguisher
- Ground fault interrupter
- (2) Upper and lower child seat tether anchors (dinette seating)
- High-mount brake lamps
- Fog lamps
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
